With sun based energy being embraced by different partners as an option in contrast to pollutive, customary wellsprings of energy, sun powered PV modules are turning out to be progressively famous. Sunlight based chargers are the most fundamental part of any sun oriented PV framework. In this article, we will outline the means during the time spent assembling a sunlight based charger. It will give the perusers a fundamental information on how sunlight powered chargers are made.
Stage 1: Sand
Quartz sand
Sand is the unrefined substance utilized for making any sun powered charger. Most sunlight based chargers being used are made of silicon, which is gotten from soil. It is a plentifully accessible material, and as a matter of fact, the second most accessible component on our planet. In any case, the change of sand into high-grade silicon includes a significant expense and is an energy-concentrated process. Silicon with a high virtue level is delivered from quartz sand, by warming the last option in a bend heater at outrageous temperatures.
Stage 2: Ingots
.jpeg)
Ingots
The silicon is gathered as strong rocks. An enormous number of these stones are softened together at exceptionally high temperatures to separate ingots in round and hollow shapes. During the softening system, it is guaranteed that all molecules are impeccably adjusted in the ideal design and direction. Besides, boron is added to give the silicone positive electrical extremity.
There are two sorts of sun powered cells: monocrystalline cells and polycrystalline cells. Monocrystalline cells rank better as far as effectiveness in changing over sun based energy into power, and thus, the cost of monocrystalline boards is higher than that of polycrystalline boards.
Polycrystalline cells, then again, are fabricated by dissolving a few silicon precious stones together. They can be perceived by the broke glass look given by the various silicon gems.
Subsequent to chilling off the ingot, crushing and cleaning are performed, so the ingot is left with level sides.
Stage 3: Wafers
Wafers
Wafers are determined by cutting the silicon ingot into flimsy plates. This interaction requires the utilization of a wire saw for accuracy cutting. A wafer is just about as slight as a piece of paper. Notwithstanding, since unadulterated silicon is sparkly, it can mirror the daylight without retaining any. To diminish the deficiency of daylight, an enemy of intelligent covering is applied on the silicon wafer.
Stage 4: Solar cells
.jpeg)

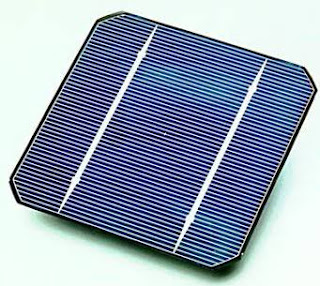

Solar cell
The wafers are then changed over into sun oriented cells fit for changing over sunlight based power into power. The wafers are independently treated and metal transmitters are added to every one of their surfaces. In view of the expansion of metal transmitters, the wafers get a lattice like network on a superficial level. This guarantees the transformation of sun oriented energy into power. Besides, the covering additionally works with the ingestion of daylight and lessens the deficiency of daylight in light of reflection.
Further, phosphorus is diffused in a flimsy layer over the outer layer of the wafers inside a broiler like chamber. Along these lines, the surface is accused of a negative electrical direction. The utilization of boron and phosphorus brings about the positive-negative intersection, which is significant for the appropriate working of the individual sun oriented cells.
Stage 5: Cell Cutting
.jpeg)
Cell cutting
With the assistance of a laser cutting machine, sun oriented cells are removed. The size of a not entirely set in stone based on the wattage of the board. This interaction is skipped for full cell size modules.
Stage 6: Stringing Process
.jpeg)
String process
The hanging system is a completely mechanized process. Hanging includes consolidating the cells to put them in a board. A decent quality board utilizes a cell of size more noteworthy than 38 mm. Sunlight based cells are combined with the assistance of patching. The upper side which points toward the sun, and ordinarily arrives in a blue/dark tone is the negative part, while the base side, which is white in variety, is the positive part.
Stage 7: Solar Glass
.jpeg)
Solar glass
When the hanging system is finished, the machine moves it to a segment where safety glass is applied to the board. The treated glass as of now accompanies a layer of ethylene vinyl acetic acid derivation (EVA).
Stage 8: Visual Inspection
A specialized auditor looks at the phones for any shortcoming or a mistake in the hanging system.
Stage 9: Taping
In this progression, an expert tapes the sun oriented cells into a grid arrangement.
Stage 10: Connection
Associations between the cells are bound together. Simultaneously, any overabundance material is removed and taken out.
Stage 11: Insulate Module Connection
The associations are then protected by utilizing a back sheet and EVA embodiment. This is done to safeguard the module for residue and dampness.
The following stage comprises of protecting the associations by utilizing a back sheet and EVA exemplification. This cycle safeguards the module from any residue and dampness.
Stage 12: Mirror Observation
In this progression, the module is checked for any residue molecule, variety befuddle, etc.
Stage 13: EI Testing
EI testing is the shortening for Electroluminescence testing. In this progression, the sunlight based module is checked in an EI machine, to distinguish any dead or low power cells, hamper, breaks, and so on. On the off chance that the module has any such mistake, it is sent back for fixing the blunder.
Stage 14: Lamination Process
The cover cycle includes overlaying the module at a temperature of 140 degree celsius. The overlaying system around requires 20 minutes. Following overlay, the modules are left for 10-15 minutes to chill off. The subsequent stage is done solely after they cool down to arrive at room temperature.
Stage 15: Trimming Backsheet, Frame Cutting and Frame Punching
In this progression, the overabundance material of the back sheet is sliced and taken out to offer impeccably formed modules. Outline cutting, then again, includes removing casings of various sizes for lining the boards. Following this, openings are punched into the casing for mounting and establishing the board.
Stage 16: Sealant Filling/Framing
Sealant is joined to the sunlight powered charger to safeguard it from air, residue and dampness. It likewise helps the module solidly append to the casing. When the edge is fixed to the module, the module is sent back to the outlining machine, where it is punched to guarantee that it is forever joined to the casing.
Stage 17: Fixing Junction box
Utilizing the sealant, an intersection box is immovably connected to the module. Following this, the leftover associations are welded and are left for 10-12 hours for relieving, so the designs are completely dry and joined appropriately.
Stage 18: Cleaning and Testing
The sun powered charger is then cleaned to eliminate all hints of residue and additional sealant. The sun based module is then associated with really take a look at its result current, voltage, and so on and a test report is produced subsequent to keeping every one of the fundamental rules. A name with every one of the subtleties is stuck to serve the clients. The module is then shipped off a quality control lab to test for its protection opposition. At long last, it is sent for a mechanical burden test.
Conclusion
In this article, we set down exhaustively the most common way of assembling a sun powered charger. A sun oriented PV module could require a high introductory speculation, however once introduced, it can run support free for quite a long time and can prompt huge investment funds on energy bills. With the danger of environmental change being more tireless than any other time in recent memory, we urge more individuals to change to sun oriented energy.
